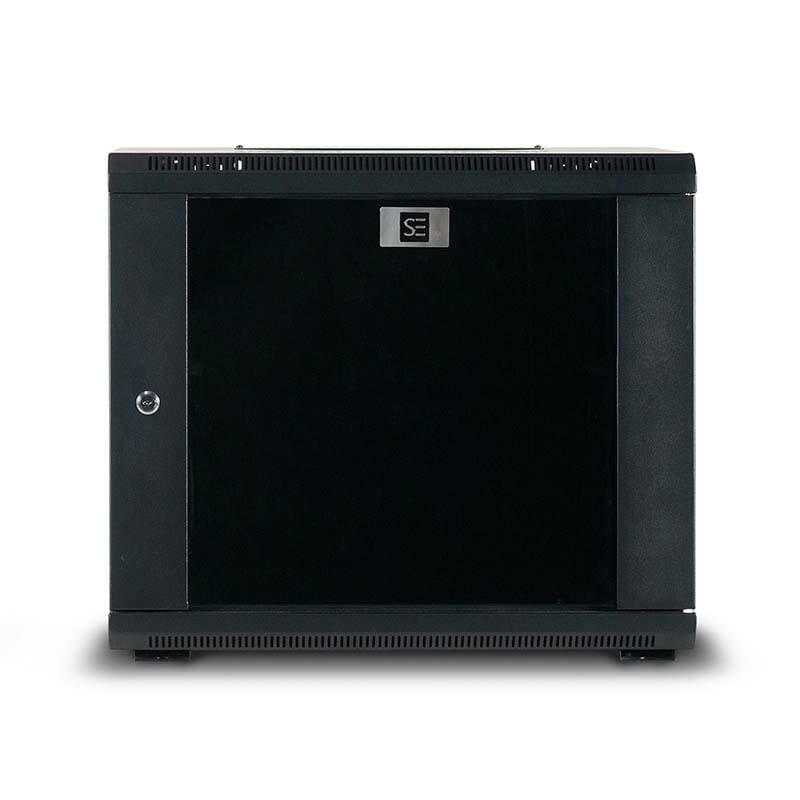

Serveredge CBN-9RU-66WM Wall Mounted server Cabinet

Serveredge 9RU Fully Assembled Hinged Wall Mounted Cabinet – 600W x 550D x 495H Toughened Glass Door Quick Release Lockable Side Panel L-Shaped Rails 1 X Shelf Cut Out Slots for Fans 20 X Cage Nuts

Availability: In stock SKU: CBN-9RU-66WM Category:

Original price was: $396.45.Current price is: $342.00. (inc. of GST)

- myithub
Availability: In stock

Description

Serveredge Wall mount Swing Frame Cabinets and Enclosures are the ideal storage solution for the standard rack mount equipments in applications with limited floor space. Constructed with a hinged wall mounting bracket & a sturdy welded frame these racks can accommodate equipments up to 8 Kgs. The vertical mounting rails are adjustable and can accommodate any standard rack mount equipment. Swing Frame feature of this rack allows easy access to the rack mounted equipments through its easy removable enclosure that is hinged to swing frame from the wall mounting brackets. Serveredge wall mount swing frame enclosures also features perforated lockable removable side panel assuring generous airflow to keep equipment operating safely. The top and bottom panels of the enclosure include convenient cable routing ports. These wall mount swing cabinets ships fully assembled and comes with a 25-year manufacturer™s product warranty.

What’s in it for you?

  • Designed for limited space environments where equipment needs to be secure and out of the way
  • Adjustable front vertical rack mount rails
  • Locking reversible front door and locking removable side panels
  • Hinged cabinet swings away from wall bracket for easy equipment
  • Fully assembled for quick installation
  • Confirm to Standard ANSI/EIA RS-31 -D IEC297-2 DIN4191; PART1 DIN4194; PAT7 GB/T3 47M 2-92
  • Warranty : 25-year
Technical Data
  • Installed whole system maximum rack depth (mm)-450
  • Rack Height-9RU
  • Shipping Dimensions (WDH/mm)- 650 X 600 X 554
  • Shipping weight (kg)-30
  • Unit Dimensions (WDH/mm)- 600 X 550 X 504
  • Unit weight (kg)-27
  • Colour- Black
  • Weight Capacity - Stationary (kg) - 80
  • Grounding lug- Front and Back Door Frames
Box Inclusion
  • Free Standing Rack-1
  • M6 screws-20
  • M6 cage nuts-20
  • M6 washers-20
  • Fixed Shelf -1
  • Keys -2
  • Owner's Manual -1
