-75%

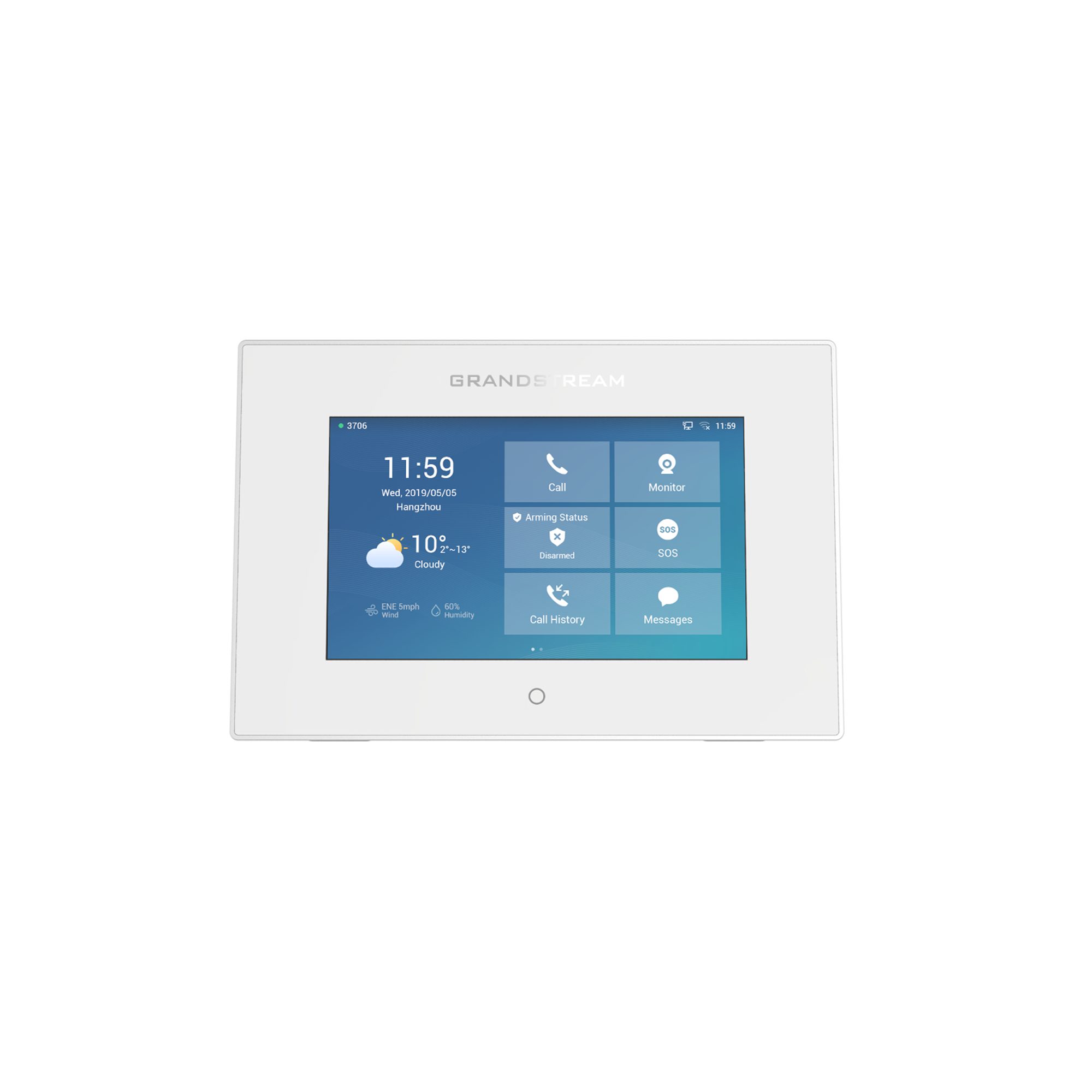

Grandstream GSC3570 HD Intercom and Facility Control Station, 7-inch touch screen LCD and full duplex 2-way HD audio

Grandstream INTEGRATED SIP INTERCOM ON WALL POE TOUCH SCREEN

Availability: In stock SKU: GSC3570 Category:

Original price was: $633.56.Current price is: $158.00. (inc. of GST)

- myithub
Availability: In stock

Description

The GSC3570 is a powerful intercom and facility control station designed to provide businesses with a dedicated device to manage facility communications, door access, physical security and more. This device can be wall-mounted or placed on a desktop as a solution for easy door control, intercom and paging communication, security camera management and facility-wide UC integration. The GSC3570 features a 7-inch touch screen LCD and full duplex 2-way HD audio. It offers a flexible network connectivity through 100Mbps network port with PoE or integrated dual-band Wi-Fi support. This SIP intercom and facility control station is designed to seamlessly integrate with Grandstream’s entire range of products, including the GDS series of Door Access devices, GSC series intercom and paging devices, security cameras and more.It is ideal for any deployment scenario where facility access, communications and security need to be centrally monitored and controlled.

What’s in it for you?

• 7 inch 1024×600 capacitive touch screen
• Dual-band 802.11 ac Wi-Fi
• 4x alarm input ports and 1x alarm output port for customized deployments
• Full duplex 2-way HD audio with advanced echo cancellation
• Secure Boot & Data, TLS and SRTP security encryption technology to protect calls and accounts
• Supports PoE to provide a network connection to the device

Technical details
  • Connectivity technology: Wired & Wireless
  • Colour: Yes
  • Speakerphone: Yes
  • Frequency band: 2.4 & 5
  • Built-in microphone: Yes
  • Certification: FCC, CE, RCM, IC
Display
  • Display diagonal: 17,8 cm (7")
  • Display technology: TFT
  • Display resolution: 1024 x 600 pixels
  • Touchscreen: Yes
  • Touchscreen type: Capacitive
  • Video formats supported: H.264, H.264 BP
Audio
  • Built-in speaker(s): Yes
  • Number of speakers: 2
  • Voice codecs: AGC, AJB, CNG, G.711, G.722, G.726-32, G.729A, G.729B, OPUS, PLC, VAD, iLBC
Weight & dimensions
  • Width: 224,5 mm
  • Depth: 149,5 mm
  • Height: 36,5 mm
  • Weight: 517 g
Power
  • AC adapter output voltage: 12 V
  • AC adapter output current: 1 A
Operational conditions
  • Operating temperature (T-T): -10 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 10 - 90%
Network
  • Ethernet interface type: Fast Ethernet
  • Ethernet LAN data rates: 10,100 Mbit/s
  • Wi-Fi: Yes
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • Power over Ethernet (PoE): Yes
  • Supported network protocols: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af
Storage
  • Memory card slot: Yes
  • Compatible memory cards: MicroSD (TransFlash)
  • Maximum memory card size: 256 GB
Packaging data
  • Indoor unit included: Yes
  • Outdoor unit included: No
  • Package width: 265 mm
  • Package depth: 180 mm
  • Package height: 54 mm
  • Package weight: 880 g
Software
  • Operating system installed: Linux
Design
  • Product colour: White
  • On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian
  • Placement supported: Vertical
Logistics data
  • Harmonized System (HS) code: 85176920
