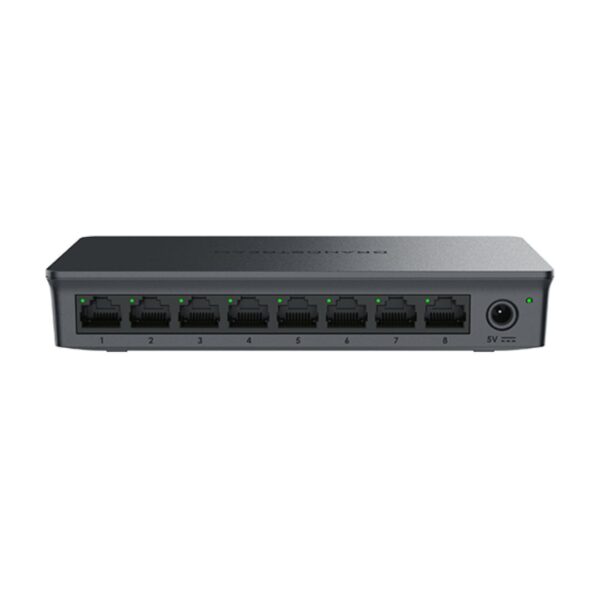

Grandstream GWN7711 Layer 2-Lite Managed Switch, 8 x GigE, Switches for Small-to-Medium Businesses

Grandstream GWN7711 Layer 2-Lite Managed Switch, 8 x GigE, Switches for Small-to-Medium Businesses

Availability: In stock SKU: GWN7711 Category:

Original price was: $74.54.Current price is: $34.00. (inc. of GST)

- myithub
Availability: In stock

Description

The Grandstream GWN7711 Layer 2-Lite Managed Switch is a powerful networking device designed specifically for small-to-medium businesses. With its 8 Gigabit Ethernet ports, this switch provides lightning-fast and reliable connectivity for all your business needs.

This switch features advanced Layer 2-Lite management capabilities, allowing you to easily control and monitor your network traffic. With support for VLANs, QoS, and Storm Control, you can ensure that your network runs smoothly and efficiently, even during peak usage times.

The GWN7711 also offers a user-friendly web interface, making it simple for any business owner or IT professional to configure and manage their network. It is also compatible with the Grandstream GWN series of wireless access points, allowing for seamless integration and enhanced network performance.

In addition, this switch is built with the latest energy-saving technology, providing cost-effective and environmentally-friendly operation. Its compact design and fanless cooling system make it ideal for installation in small office spaces or crowded server rooms.

Overall, the Grandstream GWN7711 Layer 2-Lite Managed Switch is a reliable, high-performance solution for small-to-medium businesses looking to enhance their network infrastructure. With its robust features and affordable price point, it is the perfect choice for businesses seeking to improve their network performance without breaking the bank.

What’s in it for you?

  • 8 Gigabit Ethernet ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
  • Supports Loop Detection, Cable Test, and Port Mirror to quickly locate network faults
  • LED Indicators; Per Port: Link/Activity/PoE power state & Per Device: Power
  • Whisper Quiet: fanless
  • Convenient and intelligent management through the Web UI and the cloud (GDMS)
  • Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
  • Built-in QoS allows for prioritization of network traffic
Network Protocols
  • IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Gigabit Ethernet Ports
  • 8
Power Supply
  • External 5VDC/0.6A
Auxiliary Ports
  • 1x Reset Pinhole
Forwarding Mode
  • Store-and-forward
Total non-blocking throughput
  • 8Gbps
Switching Capability
  • 16Gbps
Jumbo Frame
  • 2K/3K/4K/5K/6K/7K/8//9K/12K/15K
Forwarding Mode
  • 11.9Mpps
Packet Buffer
  • 4Mb
MAC
  • 8K MAC address capacity
  • Support MAC address search
VLAN
  • 4K VLANs
  • Port-based VLAN, 802.1Q VLAN
LAG
  • 4
Multicast
  • IGMP Snooping, Report Message Suppression
QoS
  • Auto prioritization of the incoming port of the packet
  • Priority Mapping
  • Queue scheduling, including SP, WRR, WFQ
  • Supports port priority, 802.1p priority and DSCP priority
  • Bandwidth control
  • Storm control
  • Rate limit
DHCP
  • DHCP client
Maintenance
  • Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, port mirroring, cable test and loop prevention, ping and pong watchdog
Security
  • Storm control
  • Port VLAN isolation
  • Filtering MAC adress
  • Kensington Security Slot (Kensington Lock) support
Mounting
  • Desktop/Wall-mount
LED Indicators
  • Per Port: Link/Activity - Green
  • GWN7711P Port 1-4: PoE power state - Yellow
  • Per Device: Power – Green
Environmental
  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • Storage Temperature: -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% Non-condensing
  • Storage Humidity: 10% to 90% Non-condensing
Dimensions (LxWxH)
  • Unit: 164 x 80 x 30mm Package: 202 x 166 x 54mm
Enclosure
  • Plastic
Weight
  • Unit: 0.17kg Entire Package: 0.38kg
Package Content
  • 1x Switch, 1x QIG, 1x Power Adapter
Compliance
  • FCC, CE, RCM, IC
