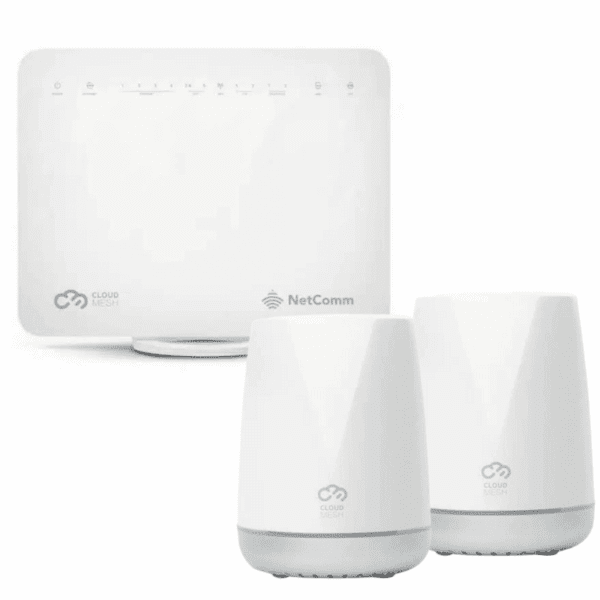

Netcomm NF18MESH CloudMesh Router with 2 X NS-01 Satellites

The CloudMesh Satellite (NS-01) works with CloudMesh Gateways NF18MESH

Availability: In stock SKU: NF18MESH+2XNS-01BUNDLE Category:

Original price was: $658.90.Current price is: $272.00. (inc. of GST)

- myithub
Availability: In stock

Description

Bundle Includes – 1 x Gateway and 2 X satellites

NF18MESH

The Netcomm NF18MESH comes equipped with CloudMesh, and when wirelessly paired with the CloudMesh-enabled NS-01 CloudMesh Satellite, can form a powerful Whole Home Wi-Fi Mesh network. With all the controls and setting centralized on the Netcomm NF18MESH, it becomes the Wi-Fi Mesh master node, and the Wi-Fi client device can roam seamlessly between the Gateway and paired Satellites.

Advanced Wi-Fi Analytics

Providing Wi-Fi AutoPilot as standard and integrated platform support for the Wi-Fi Analytics Platform means that NetComm can offer a superior data-driven environment; both for the customer (using the Wi-Fi AutoPilot functionality to scan and analyze the environment, adjusting the Wi-Fi parameters as required), and for the service provider (With the Wi-Fi Analytics Platform enabling greater visibility into the Wi-Fi environment, reducing associated support costs and providing a better, more intuitive service).

Easy to Pair with Satellites

Zero-touch provisioning (via a user-friendly cloud portal) or in-home setup (using the WPS button) makes pairing the Netcomm NF18MESH with the NS-01 simple and easy for the end user.

Made for NBN and UFB

Featuring VDSL2/ADSL2 technologies as well as a Gigabit WAN port, the Netcomm NF18MESH CloudMesh Gateway is a 3-in-1 device that provides access to VDSL/ADSL networks, and all the NBN/UFB fiber network options: FTTN, FTTB and FTTH.

WIFI AUTOPILOT

Every Netcomm NF18MESH Gateway includes the CloudMesh WiFi AutoPilot.
WiFi Auto-Pilot constantly scans and analyses the end-user WiFi environment. If any detrimental changes are detected, the AutoPilot adjusts the gateway’s WiFi parameters. Any action taken is based on a patented and weighted algorithm ensuring that the internet connection experience is not compromised. It ensures that every WiFi client device is connected on the best possible channel, using the fastest available band, at the perfect RF power level and at the closest WiFi access point.

EASY PAIRING WITH CLOUDMESH SATELLITES

The CloudMesh system is a turnkey, out-of-the-box solution. ISP Satellite pre-provisioning is available via a cloud portal and API, allowing for a Zero Touch configuration experience for the end-user. There is also an easy and fast alternative for in home setup using WPS buttons.

NS-01

The NS-01 CloudMesh Satellite brings a modern Wi-Fi experience to the home. It expands the coverage, minimizes dead zones and increases customer service satisfaction. Paired with an NF18MESH CloudMesh Gateway, the NS-01 utilizes smart roaming technology to seamlessly transition Wi-Fi clients from the Gateway to the Satellite, and has integrated platform support for the Wi-Fi Analytics Platform.

You can extend the range of your network using up to two CloudMesh satellites. These can be wirelessly connected to the CloudMesh Gateway.

Once you have positioned the CloudMesh Satellite, Always power up the satellite closest to CloudMesh Gateway first. Make sure that the first satellite is working,then power up and connect the second CloudMesh Satellite.

Improved Whole-Home Customer Experience

The NS-01 is a user-friendly device, designed to minimize common Wi-Fi problems (such as device placement to Wi-Fi interference) and deliver an enhanced whole-home customer experience. Innovative integrated software paired with an easy-to-understand LED light panel makes positioning and optimizing the device simple for the end user, as well as reducing customer churn for the service provider.

Advanced Wi-Fi Analytics

Providing Wi-Fi AutoPilot as standard and integrated support for the Wi-Fi Analytics Platform  means that NetComm can offer a superior data-driven environment; both for the customer (using the Wi-Fi Autopilot functionality to scan and analyze the environment, adjusting the Wi-Fi parameters as required), and for the service provider (With the Wi-Fi Analytics Platform enabling greater visibility into the Wi-Fi environment, reducing associated support costs and providing a better, more intuitive service).

Seamless Deployment

Zero-touch provisioning (via a user-friendly cloud portal) or in-home setup (using the WPS button) makes pairing the NS-01 with the NF18MESH simple and easy for the end user.

CLOUD ORCHESTRATION

To operate effectively, multiple WiFi access points within the same environment need a centralized point of coordination and control. This is done by the WiFi Analytics Cloud.

In addition to that, the Cloud is performing all the CPU intensive processing and is using sophisticated machine learning techniques to detect and recognize historical WiFi environment patterns to avoid future WiFi interference

IMPROVED CUSTOMER EXPERIENCE

The CloudMesh NS-01 Satellite is a user-friendly device designed for an enhanced customer experience. It’s developed to minimize common WiFi problems starting from the device placement to various WiFi interferences. Intelligent software inside paired with easy-to-understand LED lights will help end-users choose the optimal position for the best WiFi performance

What’s in it for you?

  • Mesh Enabled for seamless connection to CloudMesh Satellites
  • Automated WiFi issue resolution with WiFi Auto Pilot
  • Gigabit connection to NBN and UFB fibre networks
  • Support for VDSL2/ ADSL2+ and Voice
  • WiFi visibility and assurance with the WiFi Analytics Platform
  • Automated WiFi issue resolution with WiFi Auto Pilot
  • Seamless connection with a CloudMesh Gateway
  • CloudMesh App for WiFi Analytics and Troubleshooting
  • LED light bar for indicating the optimal placement of each satellite
  • 2x Gigabit Ports for versatile connectivity
  • Vertical PCB and Antenna design for increased Wi-Fi coverage and cooling
  • Qualcomm-based chipset for powerful WiFi
  • Zero-touch setup, Cloud Orchestration and Seamless WiFi Client Roaming for best user experience

NF18MESH
Environmental and Physical
  • Operating temperature: 0-40 degrees C
  • Humidity: 10%-95% non-condensing
  • Storage temperature: -10-60 degrees C
  • Humidity: 5%-95% non-condensing
  • DC Input Voltage: 12V/2A
  • Dimensions: 230 (w) x 200 (h) x 75 (d) mm
  • Weight: 558g
Device Interface
  • 1 x RJ45 10/100/1000Mbps WAN port
  • 1 x ADSL / VDSL port
  • 4 x RJ45 10/100/1000Mbps LAN ports
  • 2 x RJ11 Phone ports (VoIP)
  • 1 x Reset button
  • 2 x WPS buttons (2.4GHz and 5GHz)
  • 1 x Power jack
  • 2 x USB 2.0 Ports (storage)
  • 1 x Power switch
  • LED (Power/DSL/Internet/WAN/LAN1-4/2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)
VDSL
  • PPPoE/PPPoA/IPoA/ Static IP/Dynamic IP/Bridge
  • ITU-T G.993.2 VDSL2
  • Supports 8a,8b,12a,12b,17a profile
  • Supports ATM and PTM
  • Supports G.INP
ADSL2+
  • PPPoE/PPPoA/IPoA/Static IP/Dynamic IP/Bridge
  • ITU G.992.1 (G.dmt)
  • ITU G.992.2 (G.lite)
  • ITU G.992.3
  • ITU G.992.3 (Annex J)
  • ITU G.992.3 (Annex L)
  • ITU G.992.5
  • ITU G.992.5 (Annex M)
  • Supports multiple PVCs
Ethernet WAN
  • PPPoE, DHCP client, Static IP
Wireless
  • Compatible with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n and IEEE 802.11ac
  • Supports concurrent dual band (2.4GHz/5GHz) wireless
  • SSID broadcast or in stealth mode
  • Auto/Manual Channel selection
  • WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
  • WPS button (WiFi Protected Setup)
VoIP Protocol
  • SIP2.0
  • G.711, G.723 and G.726
  • FAX T.38 FAX Relay
Media
  • File Sharing
  • DLNA
Security
  • Firewall
  • MAC Filtering
Routing
  • Static Route
  • Dynamic Route (RIP v1/v2)
  • DMZ
  • Supports Layer 2 Bridge Mode
Administration
  • QoS
  • SNMP
  • UPnP
  • Syslog
  • Web-based UI
  • Remote Login
  • TR-069 Auto provisioning
  • Backup/Restore Settings
Compliance
  • RCM, NZ Telepermit
NS-01
Wireless Network
  • IEEE 802.11 ac/n/g/a
Wired Network
  • 2 x Auto-sensing Gigabit LAN ports
Dimensions (L x W x H)
  • 113 (w) x 145 (h) x 110 (d) mm
Weight (per unit)
  • 320g
Power Input
  • 100 V to 240 V/AC, 50/60 Hz
Temperature
  • Operating Temperature Range: 0 to 40 degrees C
  • Storage Temperature Range: -20 to 70 degrees C (-4 to 158 degrees F)
Humidity
  • Operating Humidity Range: 10% to 90% non-condensing
  • Storage Humidity Range: 5% to 90% non-condensing
Part Number
  • NS-01-01
