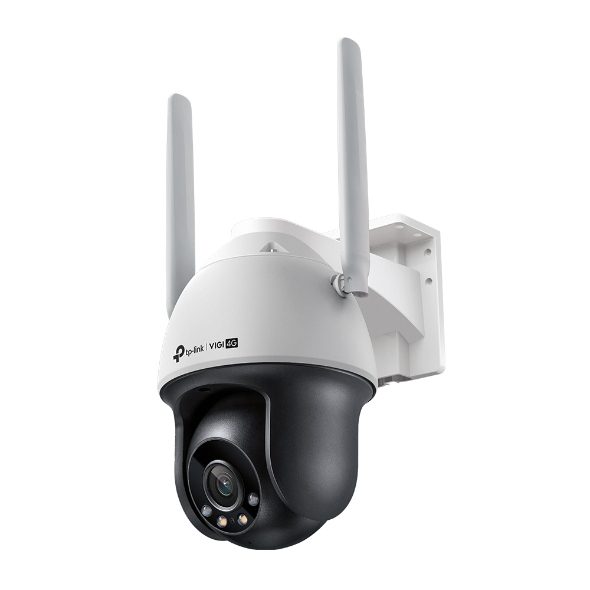

TP-Link VIGI 4MP C540-4G(4mm) Outdoor Full-Color 4G Pan Tilt Network Camera, 4mm Lens, 4G Mobile Networking, Automatic Tracking, 360° Monitoring

TP-Link VIGI C540-4G, IP security camera, Indoor & outdoor, Wired, 0,005 lm, RCM, BSMI, VCCI, NTRA, KC, Ceiling/wall

Availability: In stock SKU: VIGI C540-4G(4MM) Category:

Original price was: $289.19.Current price is: $153.00. (inc. of GST)

TP-Link
Availability: In stock

Description

Clarity and Colors, All in One

Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

Network Anywhere You Need It

No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.

Powerful Pan Tilt

Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.

Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking

Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what’s happening and take action without wasting time on irrelevant footage.

Smart Detection for Efficient Monitoring

By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense

Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.

Two-Way Audio

With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Smart Video Coding by H.265+

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Remote Management

Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.

Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

What’s in it for you?

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
  • 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
  • 360° Monitoring: Cover every corner and eliminate blind spots.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
  • Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
  • Onboard Storage: Support on-board storage up to 256 GB (SD card slot).*
Technical details
  • Sustainability certificates: CE, RoHS
Audio
  • Built-in speaker(s): Yes
  • Sample rate: 8 kHz
  • Signal-to-Noise Ratio (SNR): 52 dB
  • Built-in microphone: Yes
  • Bit rate range: 64 - 64 Kbit/s
Ports & interfaces
  • Ethernet LAN (RJ-45) ports: 1
Lens system
  • Number of lenses: 1
  • Zoom capability: Yes
  • Detect distance: 80 m
  • Observe distance: 33 m
  • Recognize distance: 16 m
  • Lens diameter: 4 mm
  • Maximum aperture number: 1,6
  • Identify distance: 8 m
  • Minimum aperture number: 1,6
Weight & dimensions
  • Width: 120 mm
  • Depth: 182 mm
  • Height: 201 mm
  • Weight: 690 g
  • Package width: 163 mm
  • Package depth: 213 mm
  • Package height: 243 mm
  • Package weight: 1,16 kg
Power
  • Power source type: DC
  • DC output voltage: 12
Operational conditions
  • Operating temperature (T-T): -30 - 60 °C
  • Storage temperature (T-T): -40 - 60 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
Network
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
  • SIM card slot: Yes
  • SIM card type: NanoSIM
  • 4G standard: LTE-TDD & LTE-FDD
  • 3G standards: WCDMA
  • Live view: Yes
  • Number of simultaneous live view channels: 3 channels
Video
  • Maximum resolution: 2560 x 1440 pixels
  • Total megapixels: 4 MP
  • Video compression formats: H.264, H.264+, H.265, H.265+
  • Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
  • Frame rate: 30 fps
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 3D noise reduction
  • Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
  • Privacy masking: Yes
  • Bit rate control: Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
  • Bit rate: 256 Kbps - 4 Mbps
  • Digital Wide Dynamic Range (DWDR): Yes
  • 3D positioning: Yes
Storage
  • Built-in HDD: No
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)
  • Maximum memory card size: 256 GB
Security
  • Password protection: Yes
  • IP address filtering: Yes
  • HTTPS encryption: Yes
  • Intelligent Video Surveillance (IVS) system features: Human detection
  • Mirror: Yes
  • Digest authentication: Yes
Image sensor
  • Sensor type: CMOS
  • Optical sensor size: 25,4 / 3,06 mm (1 / 3.06")
Management features
  • Reset button: Yes
  • Behavior analysis: Intrusion detection, Line crossing detection
Camera
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Lens viewing angle, horizontal: 80°
  • Lens viewing angle, vertical: 43°
  • Lens viewing angle, diagonal: 94°
  • Tilt angle range: 0 - 120°
  • Tilt speed: 44 °/sec
  • Pan range: 0 - 348°
  • Pan speed: 44 °/sec
  • Camera shutter speed: 1/3 - 1/10000 s
  • Number of Privacy masking areas: 4
Packaging content
  • Number of cameras: 1
  • Mounting kit: Yes
Design
  • Mounting type: Ceiling/wall
  • Product colour: Black, White
  • Form factor: Turret
  • Housing material: Plastic
  • International Protection (IP) code: IP66
Night vision
  • Night vision: Yes
  • Night vision distance: 30 m
  • LED type: IR/White
  • Number of illumination LEDs: 4
Performance
  • Type: IP security camera
  • Placement supported: Indoor & outdoor
  • Connectivity technology: Wired
  • Auto patrol mode: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Luminous flux: 0,005 lm
  • Certification: RCM, BSMI, VCCI, NTRA, KC
Features
  • Basic event: Motion Detection, Camera Tampering Detection, Exception
