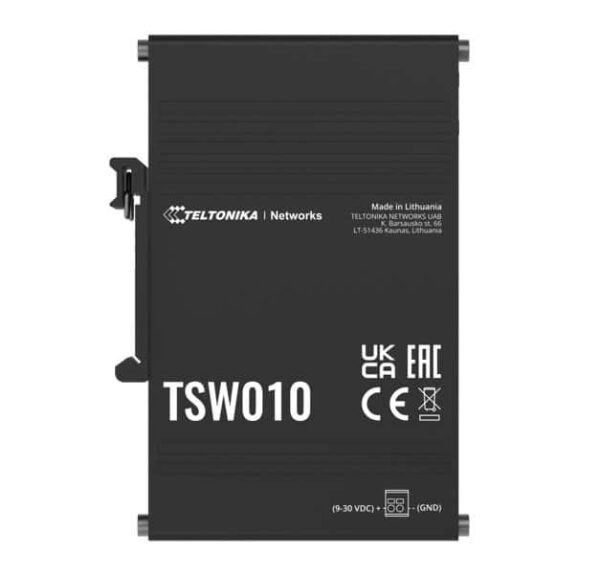

Teltonika TSW010 DIN Rail Ethernet Switch, 5x Ethernet ports with speeds of up to 100 Mbps, Integrated DIN rail bracket, Plug and Play

Teltonika DIN rail switch, Five 10/100 Ethernet ports, power supply voltages (9-30 V)

Availability: Out of stock SKU: TSW010000000 Categories: ,

$50.00 (inc. of GST)

Teltonika
Availability: Out of stock

Description

TSW010 offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

What’s in it for you?

  • PLUG-N-PLAY: Plug-n-Play, no additional configuration needed
  • MOUNTING: Integrated DIN rail bracket and surface mounting options
  • 9-30V: Wide range of supported power supply voltages
  • INDUSTRIAL DESIGN: Anodized aluminum housing and panels
  • -40 °C TO 75 °C:A wide operating temperature range
  • ETHERNET:5 x Ethernet ports with speeds of up to 100 Mbps
HARDWARE
Power supply
  • 2-pin industrial DC power socket, 9 - 30 VDC
Power consumption
  • Idle: 0.3 W / Max: 0.9 W
Status LEDs
  • 1 x Power LED, 10 x LAN status LEDs
Ethernet
  • 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az, IEEE802.3x (Flow control) standards, supports auto MDI/MDIX crossover, Auto-Negotiation function
Ingress protection rating
  • IP30
Operating temperature
  • -40 °C to 75 °C
Housing
  • Anodized aluminum housing and panels
Dimensions
  • 113.1 x 27.4 x 80.5 mm
Installation
  • Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)
  • 1 Gbps
MAC address table size
  • 2K entries
Jumbo frame support
  • 2048 bytes
Switch Processing Scheme
  • Store-and-Forward

Datasheet
