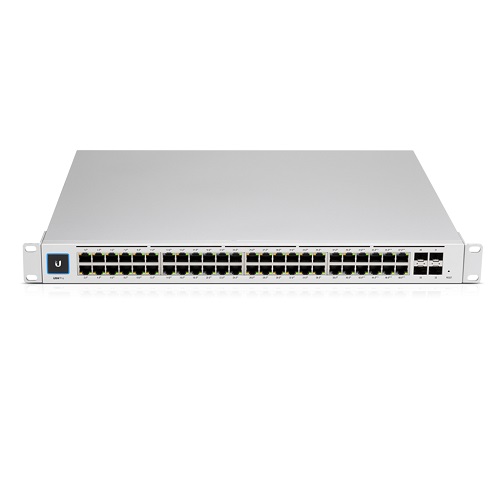

Ubiquiti UniFi 48 port Managed Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE, SFP+ : Touch Display – 660W GEN2

Ubiquiti UniFi 48 port Managed Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE – Touch Display – 660W

Availability: In stock SKU: USW-PRO-48-POE Category:

Original price was: $2,537.70.Current price is: $2,037.00. (inc. of GST)

Ubiquiti
Availability: In stock

Description

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch PRO 48 PoE, is a configurable Gigabit Layer-3 switch with auto-sensing 40 802.3at PoE+ and 8 802.3bt PoE++. It offers 48 RJ45 Ethernet ports and 4 SFP+ ports, providing 10 Gigabit PoE links to your devices and fiber uplink options to your enterprise network.

The UniFi Switch PRO 48 PoE features an 1.3″ touch LCM and integrated fans for quiet cooling. The LCM provides current switch states and the neccessary information you need for quick diagnosis.

Managed and configured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing and DHCP server. The UniFi Controller and mobile app allows admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

What’s in it for you?

  • Management Capabilities
  • Multi-Site Management
  • Near-Silent Cooling
  • Layer 3 Features
Dimensions
  • 442.4 x 399.6 x 43.7 mm
  • (17.42 x 15.73 x 1.72")
Weight With Rackmount Brackets
  • 6.25 kg (13.78 lb)
  • 6.34 kg (13.98 lb)
Interfaces Networking
  • (48) 10/100/1000 RJ45 Ports
  • (4) 1/10G SFP+ Ethernet Ports
Management
  • Ethernet In-Band
Power Method Universal Input USP RPS DC Input
  • 100-240VAC/50-60 Hz
  • 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply
  • AC/DC, Internal, 120W
Supported Voltage Range
  • 100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
  • 60W
LEDs System RJ45 Data Ports SFP Data Ports
  • Status
  • PoE; Speed/Link/Activity
  • Link/Activity
ESD/EMP Protection
  • Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
  • ETSI300-019-1.4 Standard
Operating Temperature
  • -5 to 40° C (23 to 104° F)
Operating Humidity
  • 10 to 90% Noncondensing
Certifications
  • CE, FCC, IC

USW-Pro-48-POE-AU Datasheet
